| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YOKELINK |
| الحد الأدنى لكمية: | 1000 قطعة |
|---|---|
| الأسعار: | USD0.35~USD2.9 |
| تفاصيل التغليف: | كرتون ومنصة نقالة |
| وقت التسليم: | 30-45 يوما |
| شروط الدفع: | تي / تي، خطاب الاعتماد |
| القدرة على العرض: | 50000 جهاز كمبيوتر في الشهر |
| مادة: | مزورة الصلب | التشطيب: | HDG لكل ASTM A153 |
|---|---|---|---|
| مقاس: | 1/2"، 5/8"، 3/4" |
| Part No. | A | B | C | D | Weight |
| Inch | Inch | Inch | Inch | Kg / Pcs | |
| D0712 | 1/2 | 1.82 | 0.8 | 1.300 | 0.360 |
| D0758 | 5/8 | 2.38 | 1 | 1.500 | 0.586 |

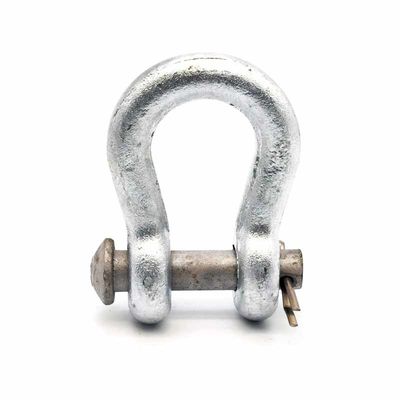

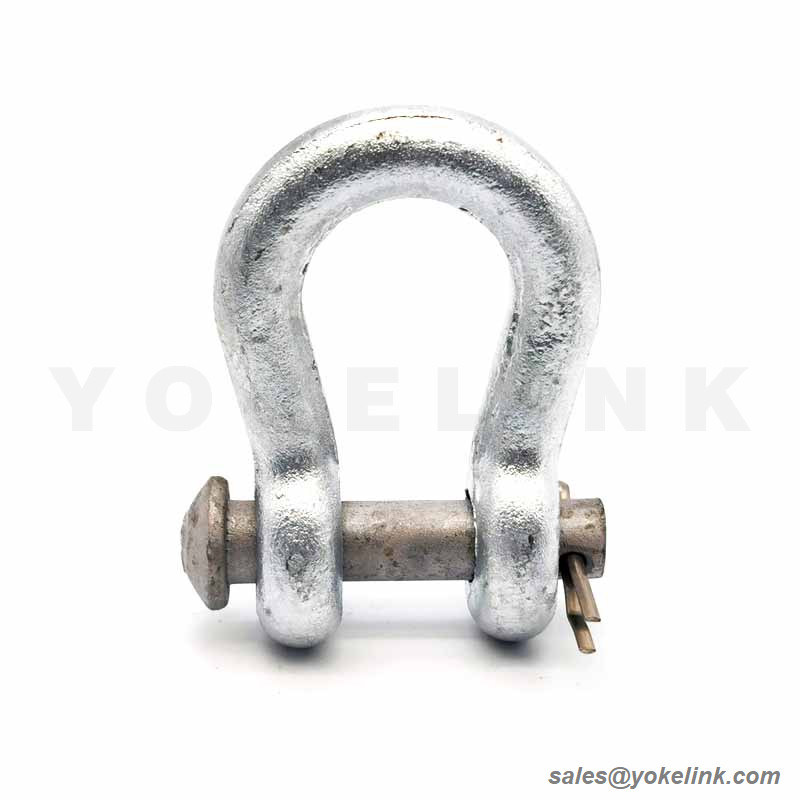

Forged Anchor Shackle in distribution application are used for attaching sspension Insulators to towers, yokes and double arming plates . Openings are enlarged to permit the use of two or more fittings. Yokelink Anchor Shackle used for attaching suspension-insulator units to the pole. Made from Drop forged steel and locked with stainless steel cotter key. The finish is Hot dip galvanized to meet ASTM A153 specification.

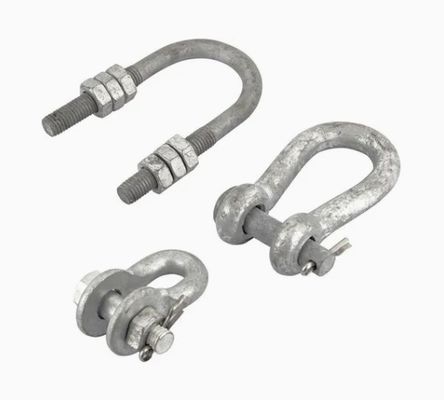

We can also provide Standard Bolt Type, Screw Pin Type per G-2130, G-209, G-210 Shackles are available. When you need Anchor Shackles, refer to above our catalog. We offer them in a full selection of sizes, provide the diameter or part number to get a quote on these Shackles, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
