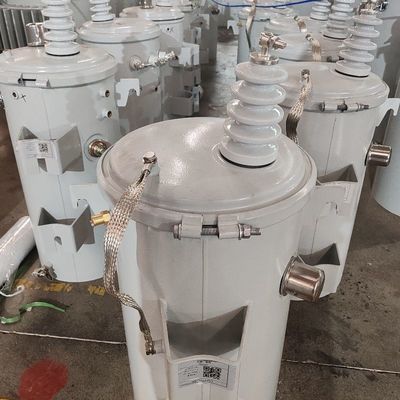

Name: 25kVA 13.8kv 120v/240v Single Phase Oil Immersed Transformer For Rural Utilities
Brand: Ningbo YokeLink Machinery Co., Limited
Price: 2,950.00 USD
Availability: InStock

منزل المنتجات Single-phase Distribution Transformer

25kVA 13.8kv 120v/240v Single Phase Oil Immersed Transformer For Rural Utilities

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	Yokelink

شروط الدفع والشحن:

الحد الأدنى لكمية:	10 قطعة
الأسعار:	$1950.0-$3950.0
تفاصيل التغليف:	كرتون ومنصة نقالة
وقت التسليم:	35-40 يوم
شروط الدفع:	الاعتماد المستندي، تي/تي
القدرة على العرض:	1000 قطعة في الشهر

ﺎﺘﺼﻟ ﺍﻶﻧ

مفصلة وصف المنتج

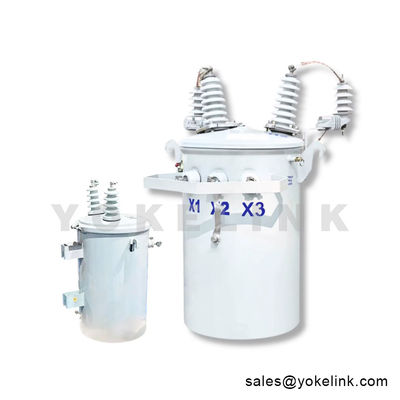

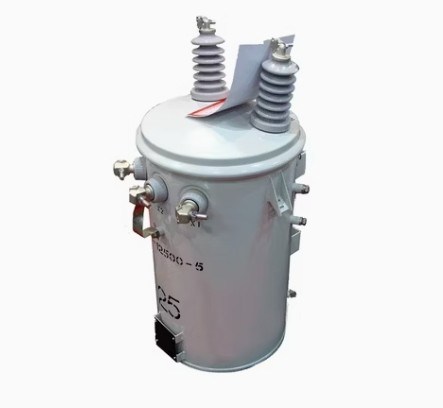

Single-Phase Pole-Mounted Distribution Transformer

Yokelink Single-Phase Pole-Mounted Distribution Transformer offers several key features. Firstly, it is compact and designed for easy pole mounting, saving ground space and making it suitable for various urban and rural settings. Its single-phase configuration is ideal for powering residential and small commercial loads.

Features:

Primary Voltage:7200 X 14400

Secondary Voltage:120/240

Frequency (Hz):60

Phase:1

Winding Material:Aluminum

Construction:ONAN

Enclosure Type:Pole Mount

kVA:15 kVA

Efficiency:CAN/CSA C802.1

Specifications

Common single-phase pole-mounted transformers have various specifications. From the perspective of voltage level, the high-voltage side is usually 10kV, 20kV, etc., and the low-voltage side is generally 220V; from the perspective of capacity, there are different options such as 30kVA, 50kVA, 75kVA, and 100kVA. Its technical parameters also include rated current, short-circuit impedance, no-load loss, load loss, etc.

Buy Single-phase Pole Mounted Transformer from YOKELINK

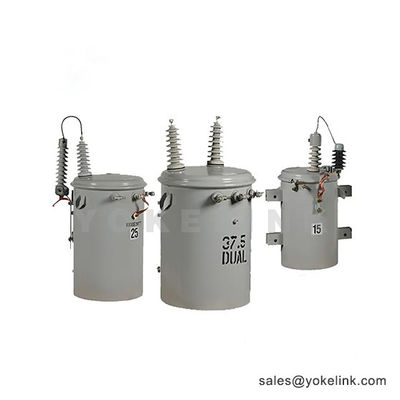

Yokelink provide single-phase pole monted transformers in multiple ratings including 3 5 10 15 25 37.5 50 75 100 167 250 333 KVA, tapping range ± 2x2.5% or others , to 120-240V, 240-480V,250-500V, Power up with YOKELINK's Single-phase Pole Mounted Transformer – the ultimate solution for efficient energy distribution! Featuring high-quality silicon steel cores for reduced energy loss, weather-resistant construction for durability, and compact design for easy pole mounting, this transformer ensures reliable performance in both rural and urban settings. With low maintenance and high efficiency.
