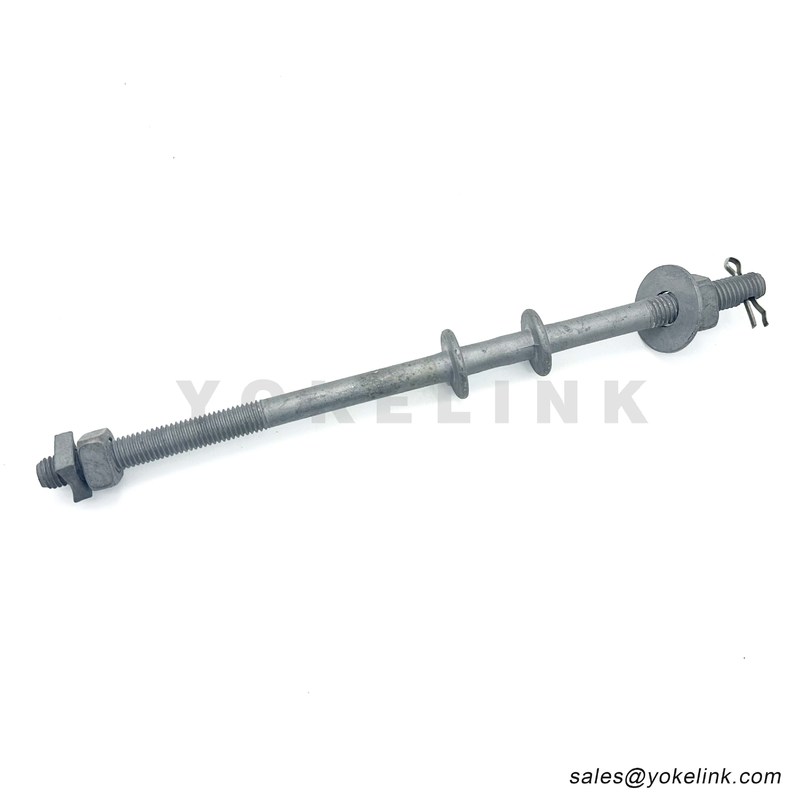

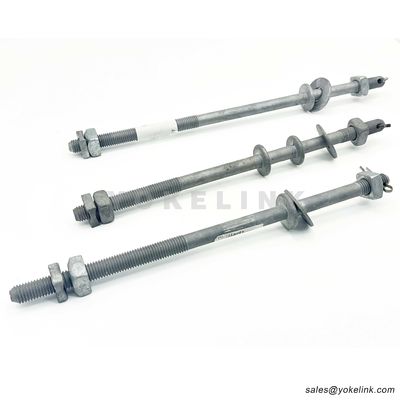

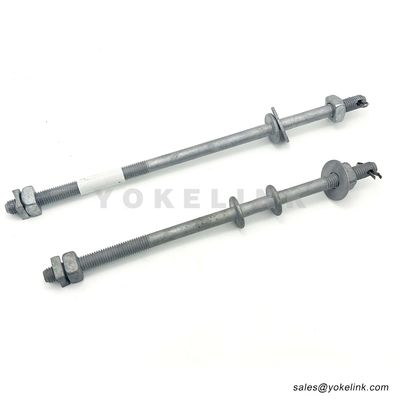

ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware

ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware

    • ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware
    • ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware
    • ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware
  • ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware

    تفاصيل المنتج:

    مكان المنشأ: تشجيانغ، الصين
    اسم العلامة التجارية: Yokelink
    رقم الموديل: تصنيع المعدات الأصلية

    شروط الدفع والشحن:

    الحد الأدنى لكمية: 1000 قطعة
    الأسعار: $0.1-$1.0
    تفاصيل التغليف: كرتون ومنصة نقالة
    وقت التسليم: 35-40 يوم
    شروط الدفع: الاعتماد المستندي، تي/تي
    القدرة على العرض: 10000 قطع شهريا
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    مادة: الصلب الكربوني طلب: التثبيت على جانب القطب
    ينهي: أستم أ-153

    Spool Bolt

    Yokelink spool bolt is an important component used in overhead power lines. There are single-upset and double-upset.Usually made of high - strength metal materials, it has excellent anti - tensile and anti - shear properties. This bolt is designed to connect and fasten various poleline hardware components, ensuring the stability and reliability of the power line system. With fine - threaded design, it can achieve a firm connection and is resistant to vibration and loosening.
    ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware


    Spool Bolt Features

    ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware
    6" thread length and cone pointed end
    Overall length is 16-3/4"
    Includes one square nut with cotter key
    Rated cantilever load is 1,900 lbs.
    Hot dip galvanized per ASTM A-153
    Manufactured in compliance with ANSI C135.31
    RUS listed, q - Bolt, double upset


    Spool Bolt Specification:

    ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware
    ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware


    Buy Spool Bolt from Yokelink

    For utility neutral and secondary lines, the Yokelink brand offers ANSI class spool insulators along with the necessary clevises, racks, and spool bolts for installation. Screw and clamp-type porcelain and nylon wireholders are offered for service drops. All items are in compliance with applicable electric utility industry standards.

    ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware ANSI C135.31 Single Upset Spool Bolt 5/8'' x 12'' for poleline Hardware
